Wholesale Price High Quality Transmission Valve Body F1CJA CVT RE0F10A JF011E Solenoid For Nissans Altimas Sentras Dodges

• Place of Origin:CN;GUA
• Type:Solenoid
• Car Model:For Nissans Sentras Dodges
• OE NO.:JF011E RE0F10A F1CJA
• Warranty:6 Months
• Brand Name:Gangji
• Certification:Trade Assurance
• Size:Standard Size

  You can click on the image below to view the various categories of parts. ↓

Product Detail :

Wholesale CVT JF011E RE0F10A F1CJA Valve Body Solenoids Kit

DESCRIPTION:

Working principle: When energized, the electromagnetic coil generates electromagnetic force to lift the closing member from the valve seat, and the valve is opened; when the power is off, the electromagnetic force disappears, the spring presses the closing member against the valve seat, and the valve is closed.

When the solenoid valve is closed, no oil pressure acts on the left end of the shift valve, and the shift valve moves to the left end under the action of the spring force at the right end; when the solenoid valve is opened, the pressure oil of the main oil passage acts on the left end of the shift valve via the solenoid valve The shift valve is moved to the right end against the spring force, thereby generating an oil passage change and realizing the shift.

Compatibility:
For Nissan Altima L4 2.5L (QR25DE Engine) 2009-2012
For Nissan Rogue L4 2.5L (QR25DE Engine) AWD 2009-2012
For Nissan Sentra L4 2.0 (MR20DE Engine) / 2.5L (QR25DE Engine) 2007-2012
For Dodge Caliber 2007-2012

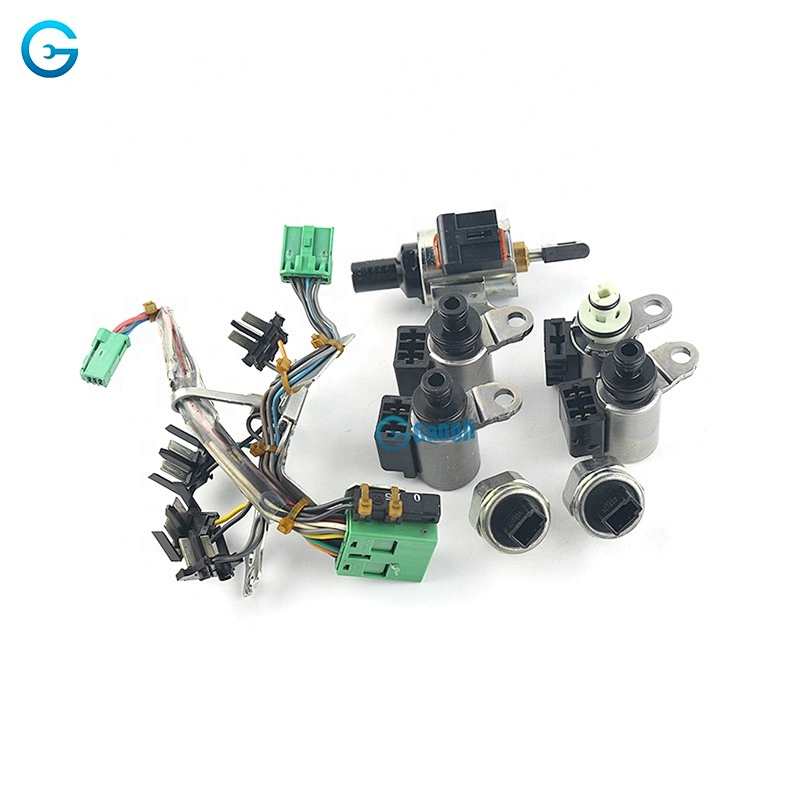

Including:

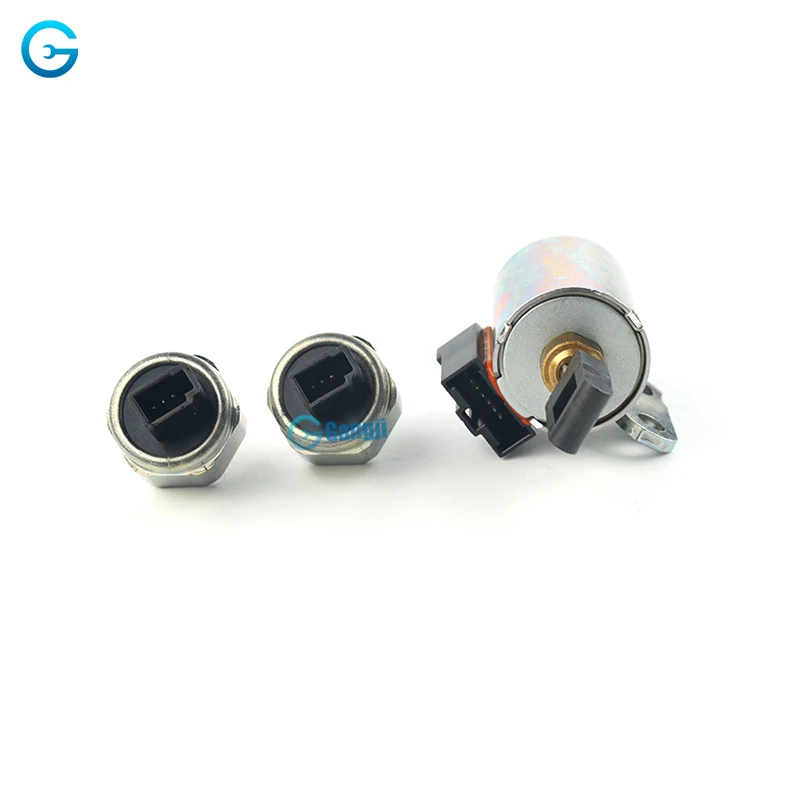

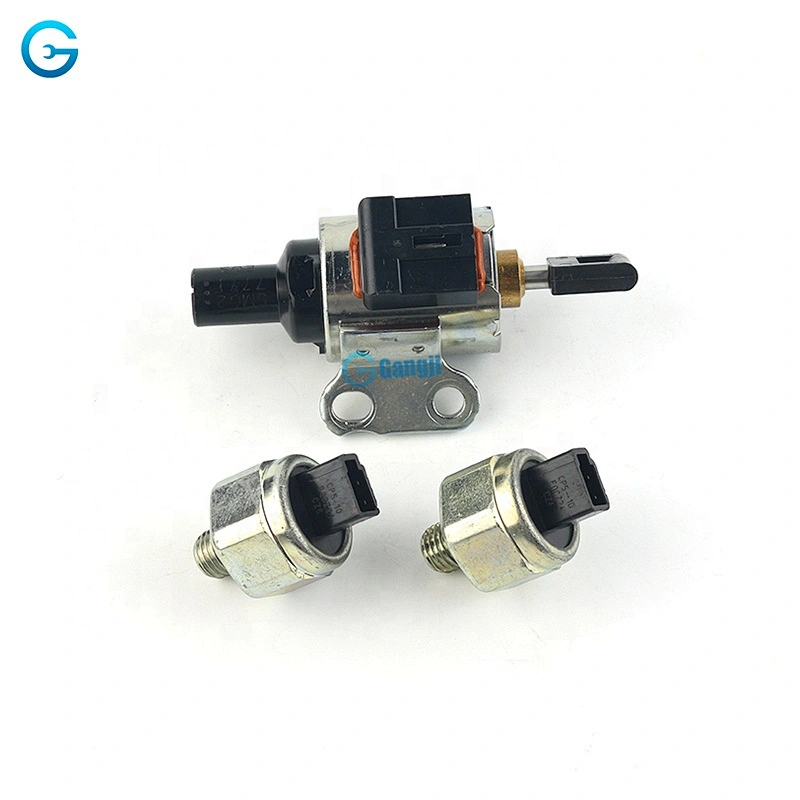

One (1) 4 Cylinder CVT Step Motor (Ratio Control Motor)
Two (1) CVT Oil Pressure Sensors
One (1) Valve Body Harness

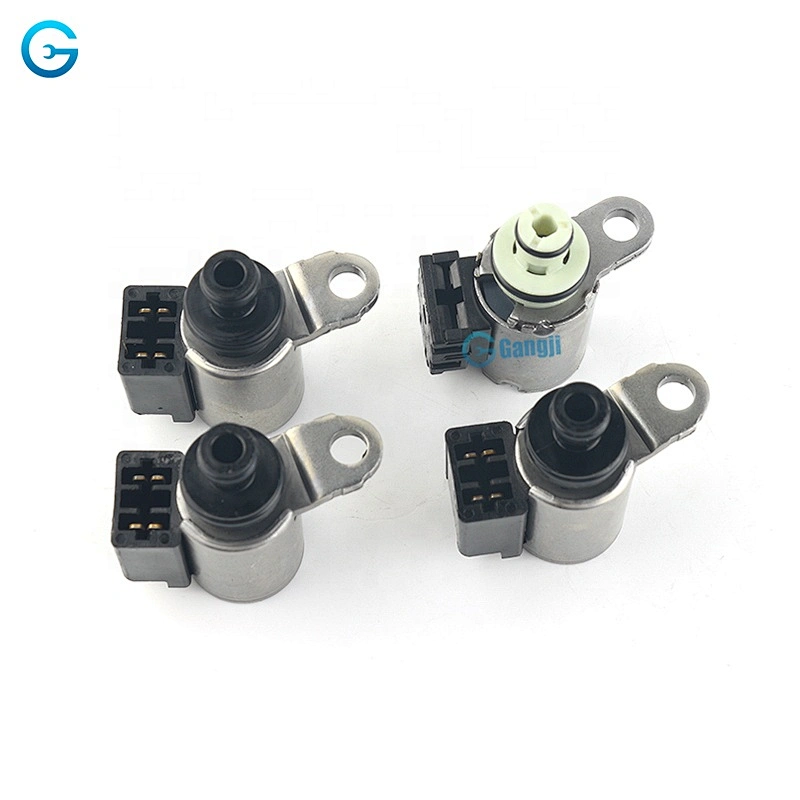

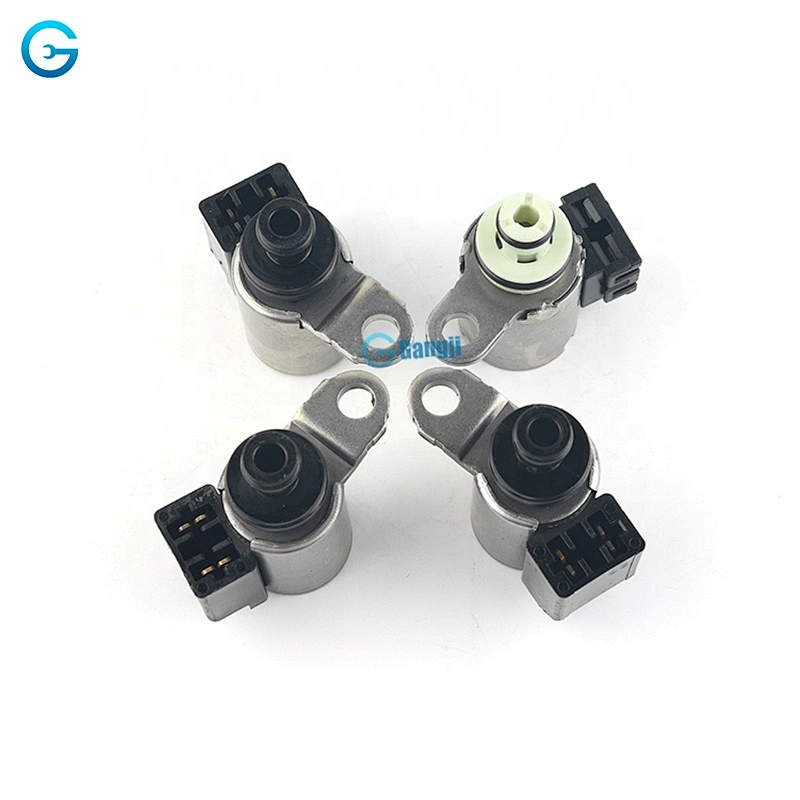

One (1) TCC Lock-Up Select Solenoid (LSS) G7T23082
One (1) TCC Lock-Up Control Solenoid (LCS) 321421A-EM
One (1) Line Pressure Control Solenoid (LPC)
One (1) Secondary Line Pressure Control Solenoid (SLPC)

You will receive exactly what you see on the picture
